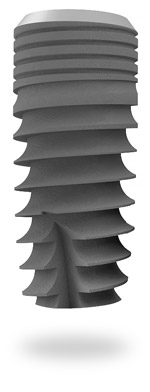

ImplatechOne SHORT, designed as 3,7 / 4,1 / 4,7 mm in diameter and 6 mm in length, is indicated in advanced cases of bone atrophy, where the vertical bone level is insufficient in the maxilla and mandible.
0.4 mm area with a 50-degree tilt that provides the switch platform effect has a machined surface. Also, there is an additional 1 mm machined surface in the neck area of the short implants, therefore the total length is 6mm + 1mm = 7 mm.
The switch platform neck design of SHORT, which has generally the same body design as ImplatechOne, also has a 0.4 mm machined surface. The thread pitch in the neck area is 0.4 mm and thread depth is 0.1 mm. The tapered threads on the body, which are designed with a reverse angle towards the apical region, has a depth of 0.45mm and 0.80mm thread pitch. They cut the bone and push the particles towards the cutting grooves in the apical, providing the necessary primary stability even in more shallow and poor bone quality.
|Implant Ø (D)||3.7 mm||4.1 mm||4.7 mm|
|Short 6 mm + 1 mm||01.02.37.06||01.02.41.06||01.02.47.06|
