IMPRESSION POSTS ANALOGS and HEALING CAPS
Compatibility of the prosthetic with the gingival margin is crucial for a successful and aesthetic prosthetic solution. The gingiva should be shaped according to the emergence profile of the prosthetic with the help of gingiva formers designed in different sizes and shapes. Both open-tray and closed-tray solutions allow for the error-free transfer of the impressions. The impressions are then connected with analog and the successful transfer process is completed with plaster modelling.
ANATOMIC GINGIVAL FORMERS
| Platform | Implant | Diameter Ø | Height | Ref. No | |
 |
Ø3.3-Ø3.7 | Ø4.0 | H 2 mm | 03.40.10.02 |  |
| Ø4.0 | H 4 mm | 03.40.10.04 | |||
| Ø4.0 | H 6 mm | 03.40.10.06 | |||
| Ø4.5 | H 2 mm | 03.45.10.02 | |
||
| Ø4.5 | H 4 mm | 03.45.10.04 | |||
| Ø4.5 | H 6 mm | 03.45.10.06 | |||
 |
Ø4.1-Ø4.7 | Ø4.5 | H 2 mm | 03.45.20.02 | |
| Ø4.5 | H 4 mm | 03.45.20.04 | |||
| Ø4.5 | H 6 mm | 03.45.20.06 | |||
| Ø5.0 | H 2 mm | 03.50.20.02 |  |
||
| Ø5.0 | H 4 mm | 03.50.20.04 | |||
| Ø5.0 | H 6 mm | 03.50.20.06 |

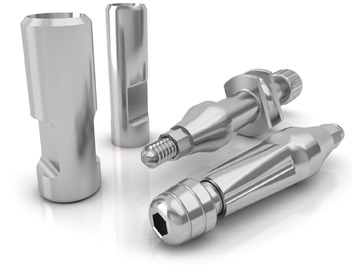

IMPRESSION POST – ANALOG
| Platform | Implant | Closed Tray Impression Post | Open Tray Impression Post | Analog | ||
|
Ø3.3-Ø3.7 |  |
 |
 |
 |
 |
| 04.01.15.03 | 04.01.10.03 | 04.01.15.02 | 04.01.10.02 | 04.01.10.01 | ||
|
Ø4.1-Ø4.7 |  |
 |
 |
 |
 |
| 04.01.25.03 | 04.01.20.03 | 04.01.25.02 | 04.01.20.02 | 04.01.20.01 | ||
