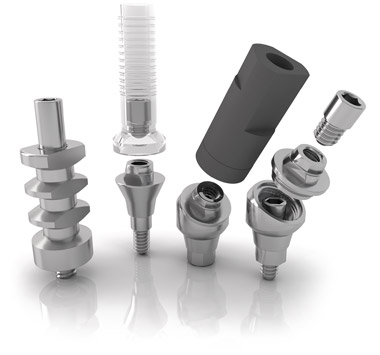

MULTI UNIT

RESTORATION SOLUTIONS



Abutment solutions that are screw-retained from the occlusal side are preferred in the current implant prosthetic approach to increase the longterm implant success rate and avoid complications due to residual cement. At the same time, it is an essential solution in cases where the vertical dimension is short, and it also provides solutions in Zircon abutment – Zircon crown applications for aesthetic implant prosthesis indications. Screwretained abutments are also used in bar-retained prosthesis indications in total edentulous cases.

EASY AND COMFORTABLE IMPLANT TRANSFER

Short and flexible MULTI-UNIT piece allows you to carry the abutment safely and easily, even in limited areas.

ADVANTAGES OF MULTI-UNIT SOLUTIONS

  • Reduces treatment duration
  • Improves aesthetic results
  • Allows you to fix the prosthesis on the same day of implant surgery
  • Provides a rapid solution with its simple restoration concept

MULTI UNIT ABUTMENT

Straight abutments, which are single-piece and can be screwretained with cast modeling, provide solutions for all occlusal screw-retained restorations.

Multi Unit Abutment
Platform Ref. No Diameter | Height
02.05.10.05 H 0.5 / 1.0 / 2.0 / 3.0 / 4.0 mm
Ø3.3-Ø3.7
02.05.20.05 H 0.5 / 1.0 / 2.0 / 3.0 / 4.0 mm
Ø4.1-Ø4.7

MULTI UNIT ABUTMENT SET

Multi Unit Abutment
Multi Unit
Abutment
Open Tray Transfer
Open Tray
Impression Post
Analog
Analog
Healing Abutment
Gingiva Former
Burnout Sleeve (Plastic)
Castable
Abutment
Screw Fixation
Prosthesis
Screws

MULTI BASE ABUTMENT

Screw-retained restoration solutions designed at 17° – 30° angles offer immediate implant placement and immediate loading possibility in total edentulous cases.

Multi Base Abutment
Platform Ref. No Diameter | Height
02.08.10.25 17° | H 2.5 / 3.5 mm
30° | H 3.5 / 4.0 mm
Ø3.3-Ø3.7
02.08.20.25 17° | H 2.5 / 3.5 mm
30° | H 3.5 / 4.0 mm
Ø4.1-Ø4.7

MULTI BASE ABUTMENT SET

Multi Base Abutment
Multi Base
Abutment
Base Cover
Multi Base
Tap
Open Tray Transfer
Open Tray
Impression Post
Analog
Analog
Healing Abutment
Gingiva
Former
Temporary Abutment
Provisional
Titanium Abutment
Burnout Sleeve (Plastic)
Castable
Abutment
Screw Fixation
Prosthesis
Screws

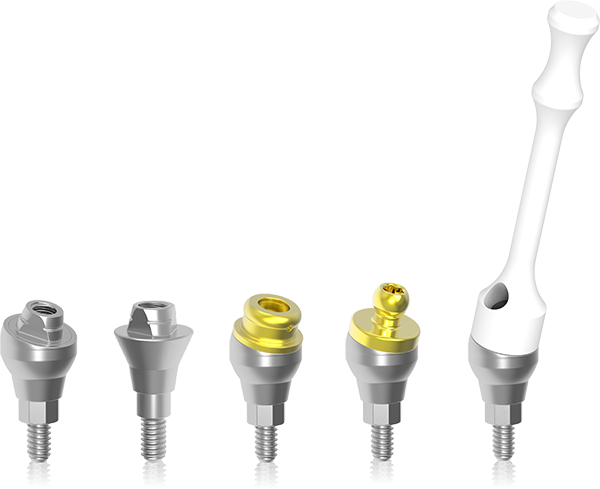

MULTI UNIT OVERDENTURE

Ball Abutment and Locator Abutment parts, which are adapted to the MULTI-UNIT part used at 17 degrees and 30 degrees, are designed to be compatible with Rhein 83 and Zest caps, which have remarkable international quality and success.

This design allows for prosthesis solutions to be placed on implants at very high angles for patients with insufficient bone and planned removable prosthesis.

Multi Unit Overdenture
Platform Ref. No Diameter | Height
02.08.11.25 17° | H 2.5 / 3.5 mm
30° | H 3.5 / 4.0 mm
Ø3.3-Ø3.7
02.08.21.25 17° | H 2.5 / 3.5 mm
30° | H 3.5 / 4.0 mm
Ø4.1-Ø4.7

BALL ABUTMENT

MULTI BASE BALL ABUTMENT SET

Açılı Multi Base Abutment
Angled Multi Base Abutment
Ball Abutment H1
Ball Abutment H1
Ball Abutment H2
Ball Abutment H2
Pick Up
Pick Up
Impression
Ball Analog
Ball Analog
Metal Housing
Metal Housing
Plastic Housing
Plastic Housing
O-ring
O-ring
(Plastic)

LOCATOR ABUTMENT

MULTI BASE LOCATOR ABUTMENT SET

Açılı Multi Base Abutment
Angled Multi Base Abutment
Locator Abutment H1
Locator Abutment H1
Locator Abutment H1
Locator Abutment H2
Pick Up
Pick Up
Impression
Ball Analog
Ball Analog
Metal Plastic Housing
Metal & Plastic Housing
